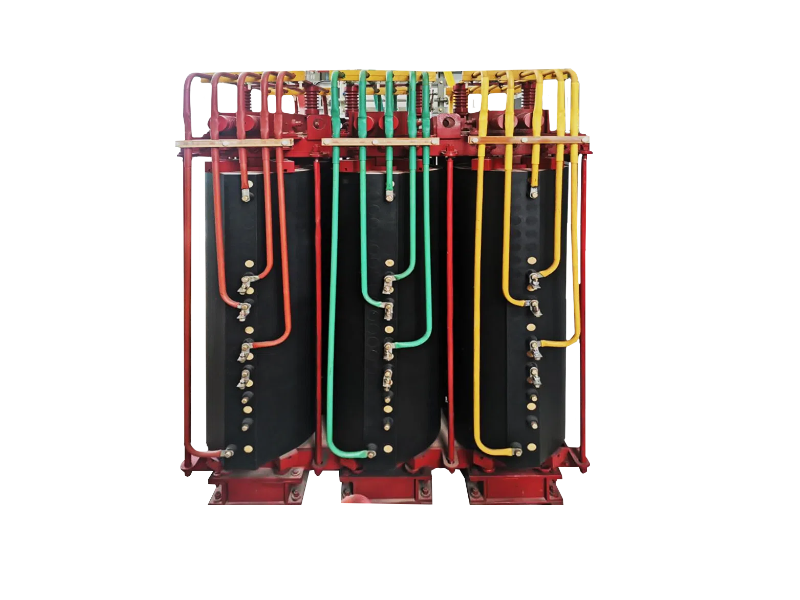

Magnetic Controlled Reactor（MCR）

Product Introduction

Magnetic Controlled Reactor (MCR for short) is a dynamic reactive power compensation device based on magnetic valve-type controllable reactor technology. It is widely used in distribution network systems of industries such as power grid, petroleum, chemical engineering, railway and urban rail transit, steel, coal, and other industrial and mining enterprises. MCR has significant advantages in fields such as voltage stability, reactive power compensation and harmonic suppression.

Product Specifications
Voltage level: 10 kV, 35 kV.
Rated capacity (kVar): 50-30000.
Frequency: 50/60 Hz.
Number of phases: Three.
Insulation class: F/A

Product Features
1) By controlling the control angle of silicon controlled rectifier for automatic control, it can be adjusted continuously, and flexible compensation from basic compensation to rated capacity can be realized to improve voltage quality.
2) When the control system fails, the main body part can still output the basic compensation capacity, and there will be no complete loss of compensation in the system.
