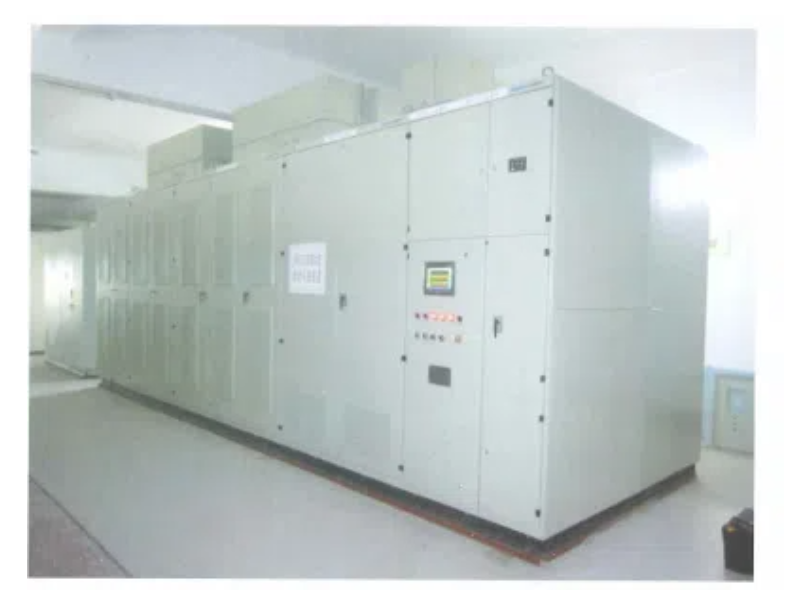

Static Var Generator (SVG)

Product Introduction
Static var generator (SVG), as a dynamic reactive power compensation device, compensates effectively for the reactive power of the system. It stabilizes the system voltage and improves the stability level of system transient voltage. It filters out or suppresses harmonics to effectively solve the problem of three-phase imbalance. It minimizes the impact of voltage flicker to the greatest extent. It is widely applied in the fields of new energy power generation and industrial and mining enterprises.

Product Specifications
Voltage level: 10 kV, 35 kV.

Rated capacity: 1 Mvar - 100 Mvar.
Inverter type: Chain converter.

Product Features
1) Type: Hanging type, pressure-reducing type, indoor type, outdoor type (container, prefabricated cabin).
2) Small starting impact: Start by self-motivation.
3) Fast response speed: Rapid output of reactive power characteristics within 10 ms.
4) Good harmonic characteristics: It can output harmonic currents of a set number (for load harmonic filtering), and the output current is fully active and controllable, which can meet various user needs.
5) Multiple compensation functions: Restrain over-voltage in the power system and improve the stability of system voltage; improve the transient stability level of the system, reduce the quantity of low-voltage released loads, and prevent the occurrence of transient voltage collapse; maintain the terminal voltage of transmission lines dynamically and increase the limit of steady-state transmission power of transmission lines; dampen the power oscillation of the power system; restrain voltage flicker, compensate for load imbalance, improve the power factor of the load and filter out harmonics.
