Overview

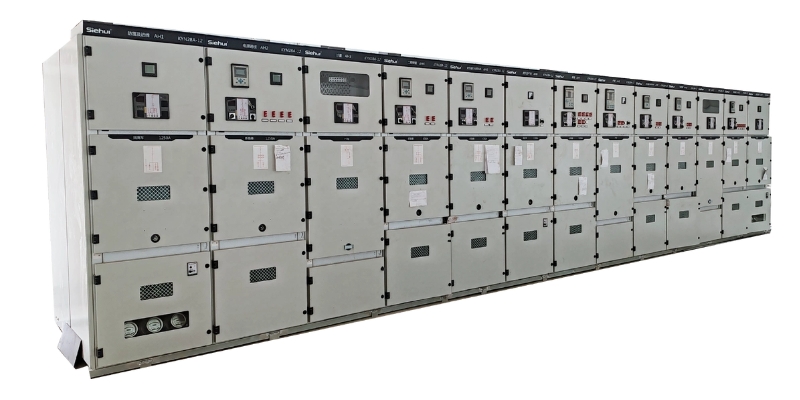

The rated current of the low-voltage distribution cabinet is designed for AC 50Hz, with a rated voltage below 1KV. It is used for power conversion and control in distribution systems serving as power, lighting, and distribution. This product features strong breaking capacity, excellent dynamic and thermal stability, flexible electrical configurations, convenient assembly, strong series applicability and practicality, and a novel structure.

Main components

The equipment frame utilizes a standard section assembled structure, offering high assembly precision and strength. The cabinet is divided into three independent compartments: the busbar chamber, the functional unit chamber, and the cable chamber, which effectively isolates faults and ensures safety during live maintenance. The drawer units are equipped with mechanical interlocking devices, enabling position control for connect, disconnect, test, and isolation states, ensuring operational safety.

Product advantages

It features a combined and assembled structure with a simple design. The operating mechanism is relatively straightforward. It offers advantages such as high breaking capacity, excellent dynamic and thermal stability, a rational structure, flexible electrical configurations, strong series applicability, and high versatility.

Conventional products

Conventional products include: GCK withdrawable switchgear, GGD low-voltage fixed switchgear, and MNS-type low-voltage withdrawable switchgear.

Applications

GCK distribution cabinets feature a compact structure, are safe and reliable, and integrate power distribution, control, and protection. They are widely used in factories, shopping malls, and residential buildings. Regular maintenance ensures long-term stable operation.

GGD low-voltage distribution cabinets have a wide range of applications. In industrial production, they can meet the power demands of various machine tools and production lines. In commercial establishments, they provide stable power for lighting, elevators, air conditioning, and other equipment. In residential areas, they handle the power distribution for residential buildings, ensuring normal electricity supply for every household.

MNS low-voltage withdrawable switchgear is widely used in various fields of low-voltage distribution systems, such as industrial and mining enterprises, large buildings, hotels, and municipal construction, making it a capable assistant in power management.
