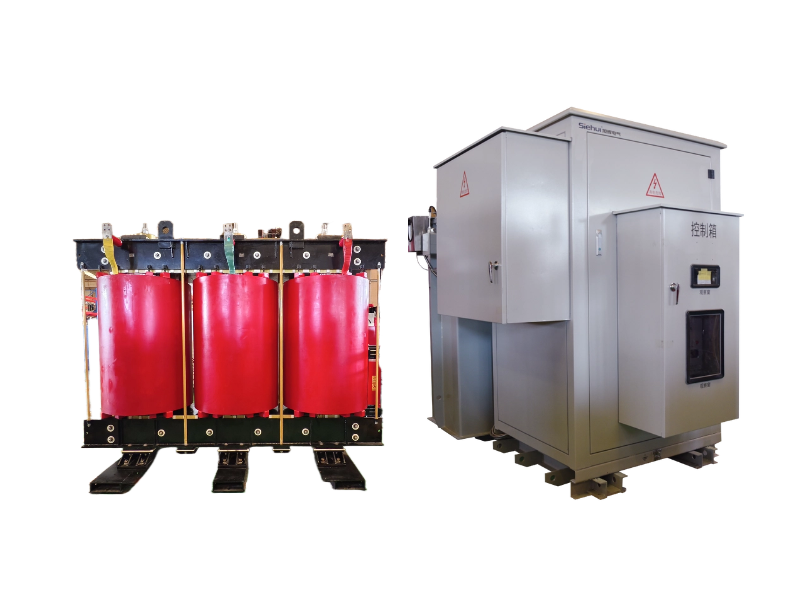

Shunt Reactor

Product Introduction
The shunt reactor is a reactive power compensation device used in power transmission and transformation. It compensates for the capacitive charging current of the line, improves the reactive power balance of the power system, reduces the reactive power loss of the line and enhances the operational efficiency of power system.

Product Specifications
Voltage level: 10 kV, 35 kV.
Capacity: 1000- 50000 kVar.
Frequency: 50/60 Hz.
Number of phases: Three.
Insulation class: A/F.

Product Features
1) Reactive power compensation: It can compensate for the capacitive reactive power in lines, thereby improving the power factor of power grid and enhancing the operational efficiency of power system.
2) Voltage regulation: It can regulate and control the voltage level in the system effectively, especially in long-distance transmission lines, so as to weaken the increase in power frequency voltage caused by the capacitive effect under no-load or light-load conditions and improve the voltage distribution along the line.
3) Stability improvement: It can enhance the power system stability. Especially in the event of fault or load shedding, it can prevent sharp voltage fluctuation and ensure the power grid safe operation.
4) Flexible installation: It can be installed flexibly. It can be distributed in the lines according to actual needs or placed at key nodes such as substations.
5) Advanced technology: It adopts advanced technologies and materials, featuring excellent linearity, good heat dissipation, high insulation strength, high mechanical strength, small vibration amplitude, low noise pollution and strong overload capacity, which greatly enhances the reliability and service life.
