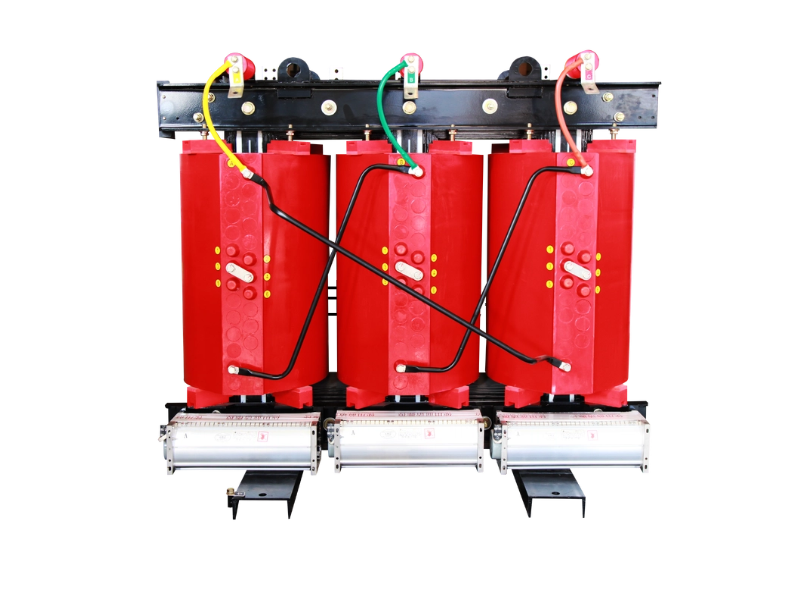

Dry-type Transformer

Product Introduction

The dry-type transformer is a type of transformer that realizes cooling and insulation with air or solid insulating materials such as epoxy resin instead of using insulating oil. It is widely applied in distribution systems in urban and rural power grids, industrial and mining enterprises, new energy power generation and infrastructure fields such as railways, airports, hospitals and schools. It is used to convert the high voltage of power grid into a low voltage (such as 10kV/0.4kV) suitable for users.

Product Specifications
Voltage level: 10 kV - 35 kV
Rated capacity: 30-2500 kVA
Frequency: 50/60 Hz
Number of phases: Three
Connection group: Dyn11/Yyn0
Insulation class: F/H
Energy efficiency class: 1-3
Loss type: SC(B)10-SC(B)18
Standard: IEC/GB/ANSI/IEEE/NEMA

Product Features:
The product has a rich series and a strong short-circuit resistance feature, with low loss, low noise, no pollution,easy maintenance and anti-flaming function. It can be installed at the load center to save investment costs.
